Лазерная балка из авиационного алюминиевого сплава пятого поколения

In order to improve the beam structure and optimize its dynamic performance, while ensuring the stability of the beam structure, the fourth-generation aviation aluminum alloy beam was developed using finite element analysis. The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Лазерная головка

The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.

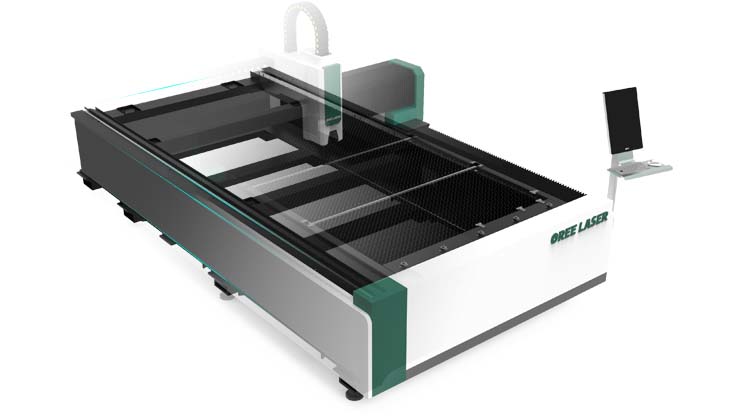

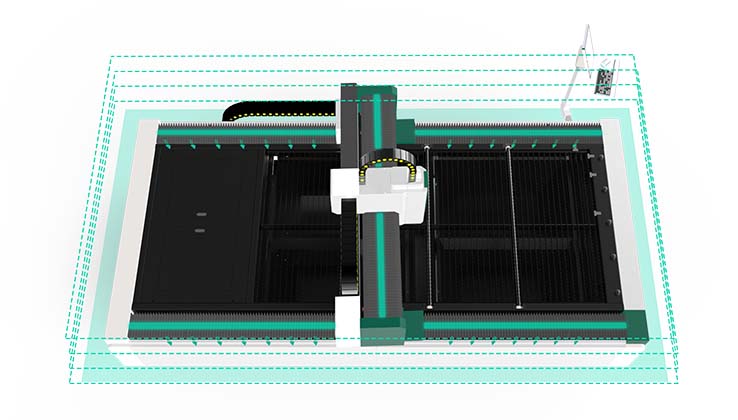

Сварная станина из сверхтяжелой стальной пластины высокой жесткости

The raw material of the welded bed is 12mm thick steel plate. The finite element analysis assists in optimizing the structure of the bed, and the groove welding method is used to achieve equal strength butt joints to ensure the good mechanical properties of the bed. After stress annealing and natural aging treatment to eliminate internal stress, maintain the extremely high stability and cutting accuracy of the bed.

【1】The maximum load per square meter of the operating platform is 200KGS;

【2】Effectively resist the huge inertia brought to the bed by high-frequency and high-speed commutation, and the bed is more stable;

【3】The shape variables of the rail mounting surface is small, generally around 0.02mm/M (read as: 0.02mm per meter)
