PRODUCT DESCRIPTION

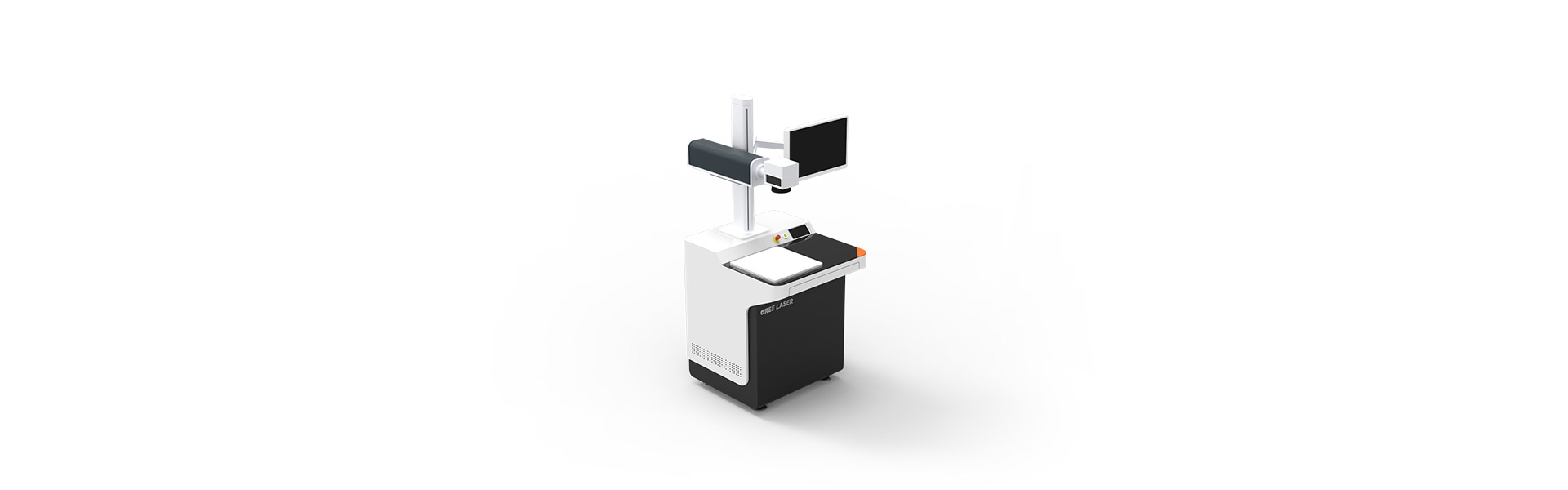

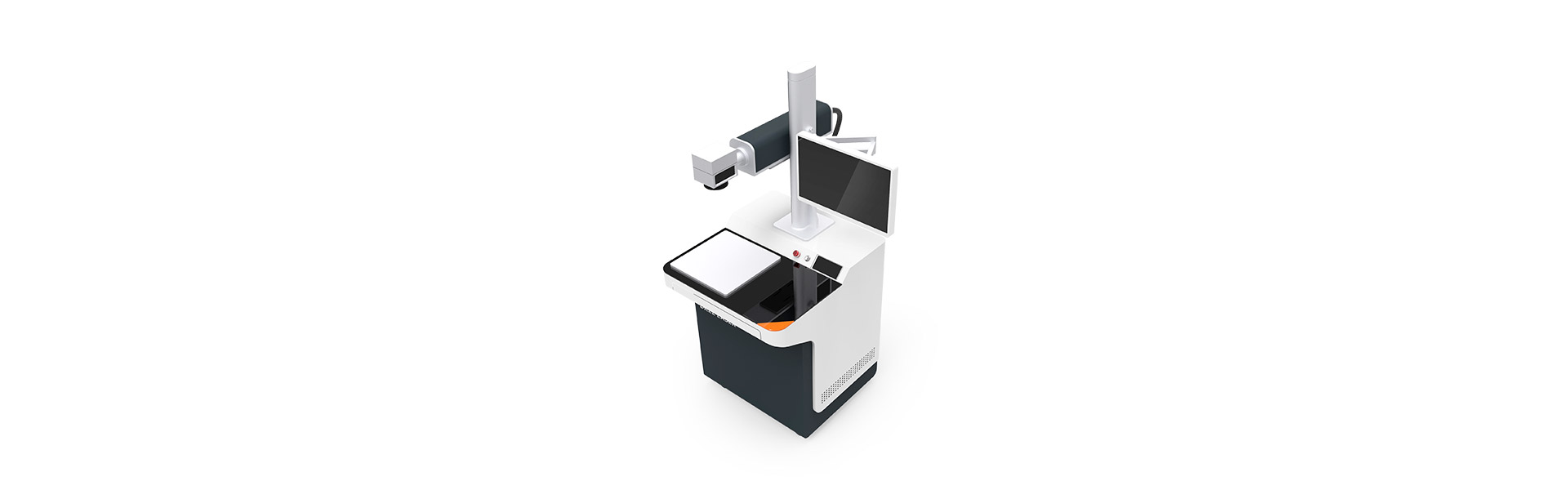

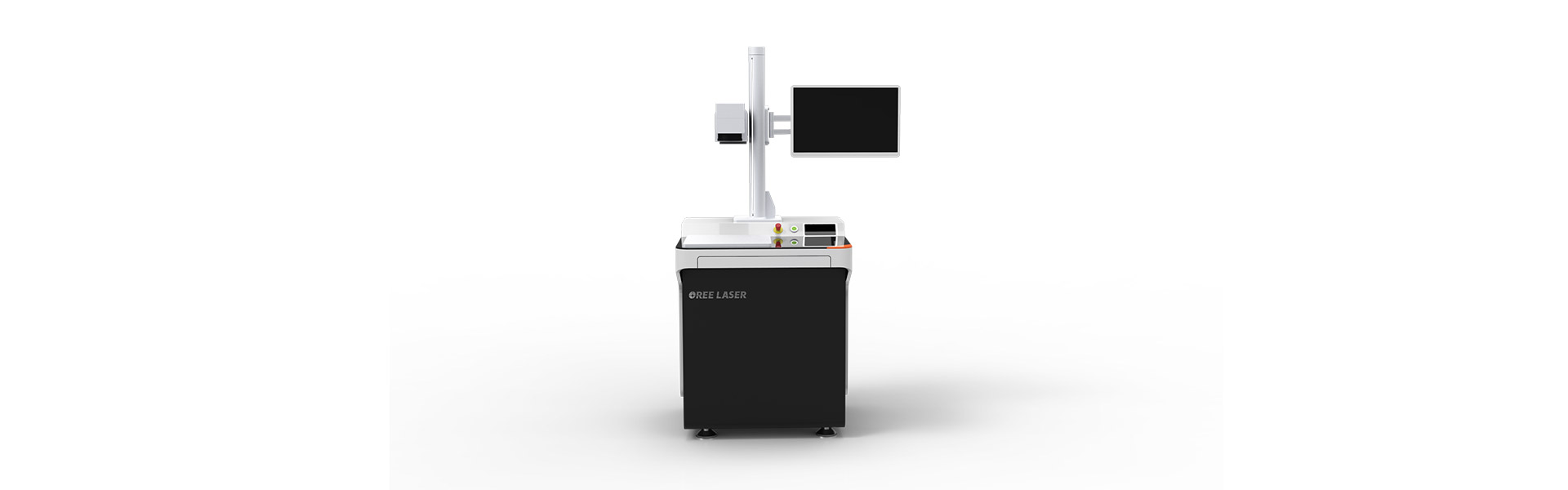

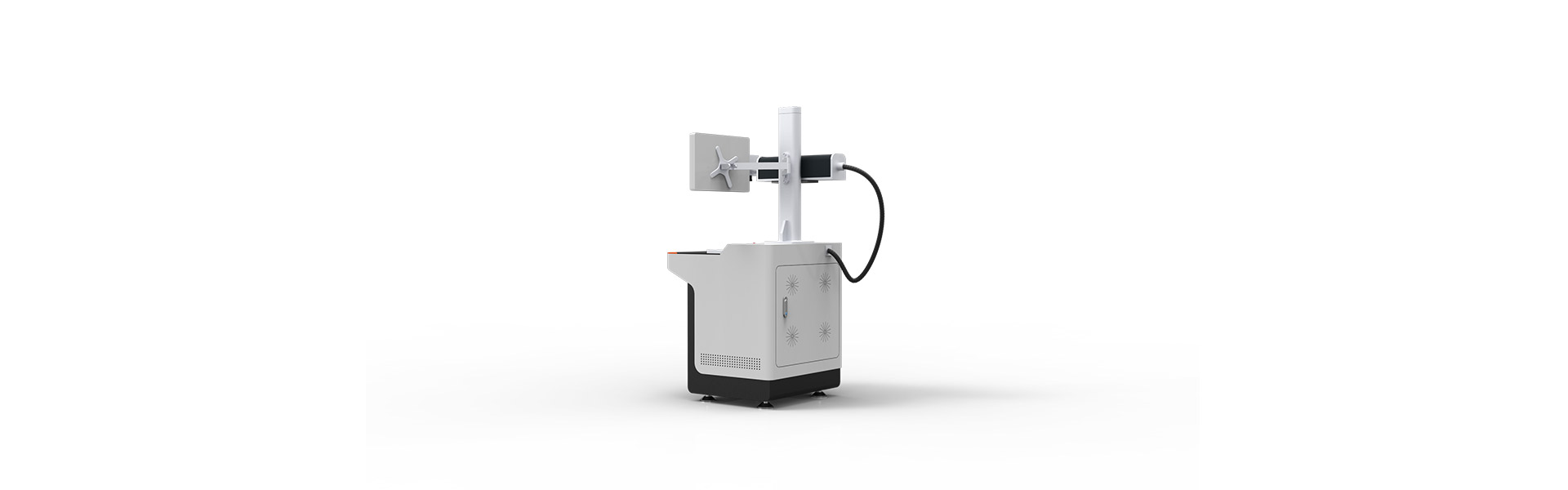

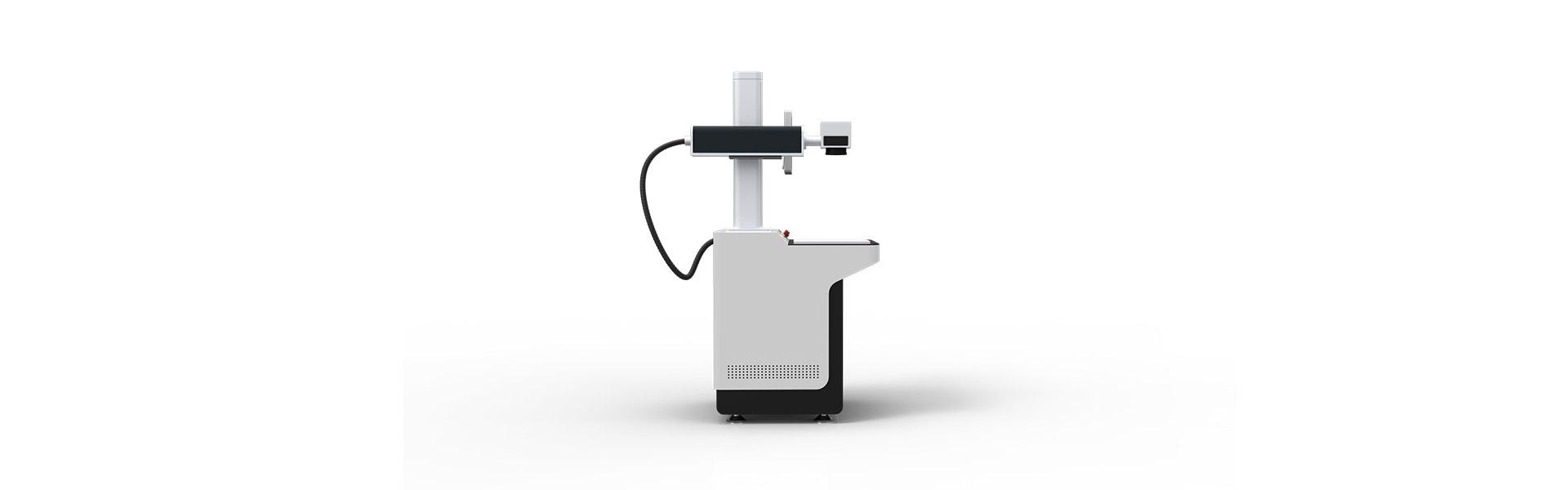

Desk table fiber laser marking machine R-T

Oree laser desk table fiber laser marking machine can process most metal and nonmetal materials, metal: stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, ring and other plate products. Nonmetal: painting acrylic, density board, plastic, acrylic acid, rubber, bamboo, marble, painting glass, TPU(Thermoplastic polyurethanes) Desk Table Fiber Marking Machine uses in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware, tools, accessories, precision instruments clocks and watches, glasses, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipes and other industries.

mm inch

Model	R-T
Working Area	100100mm / 200200mm / 300*300mm
Laser Power	20w/30w/50w
Marking line speed	≤7000mm/s

Запросить предложение

Преимущество продукта

This is an ideal entry-level laser cutting machine

Увеличение мощности лазера

Customers can increase the laser wattage according to their demand among 20w, 30w, 50w, 100w. The higher the laser power, the deeper the marking depth.

Полевое зеркало

The field lens determines the working surface machine. The general size of field lens is 100x100mm, 200x200mm, 300x300mm.

It needs to noticed that the larger the general laser power, the larger the selected field lens.

Поворотная ось

The machine is equipped with two rotating shafts, one is a 50mm diameter rotating shaft, which is widely used for marking rings and metal pens.

Защитные очки для лазера

Laser protective glasses prevent or reduce laser damage to the human eye. Laser goggles are highly effective and safe goggles with the features comfortable, beautiful, safe and reliable.Its optical safety performance fully meets GJB1762-93 standard. Laser goggles include reflective and absorbing style, and can fully protect laser and glare in specific wavelengths. It is suitable for a variety of laser devices with its visible light transmittance is over 70% and the optical density is 5.0 or more.

Технические данные

mm inch

	R-T
Model	R-T
Working Area	100100mm/200200mm
Laser Power	20w/30w/50w
Marking Line Speed	≤7000mm/s
Minimum Line Width	0.02mm
Minimum Character	0.15mm*0.15mm
Working Voltage	220V/50HZ, 110V/60HZ
Repeatability Accuracy	±0.01mm
Laser Wavelength	1064nm

	R-T
Model	R-T
Working Area	44in/88in
Laser Power	20w/30w/50w
Marking Line Speed	≤276in/s
Minimum Line Width	0.02mm
Minimum Character	0.15mm*0.15mm
Working Voltage	220V/50HZ, 110V/60HZ
Repeatability Accuracy	±0.01mm
Laser Wavelength	1064nm
